48 mono input channels
24 mix buses
12 matrix buses
2 Stereo buses
Dante primary / secundary
Sampling frequency: 96 kHz / 48 kHz
13,3″ tiltable multi touch screens
4,3″ multi touch Utility scherm
13 x 100 mm touch-sensitive faders
4 user defined knobs, 1 Touch & Turn
12 DCA Groups, 12 mute/dim groups
16 effects, 24 PEQ/GEQ
32 Premium effects with optional PY-DSP
12 channels Dugan Automixing (Expandable to 48 by optional DEK-DUGAN)
Dante-interface: 64 inputs / 64 outputs

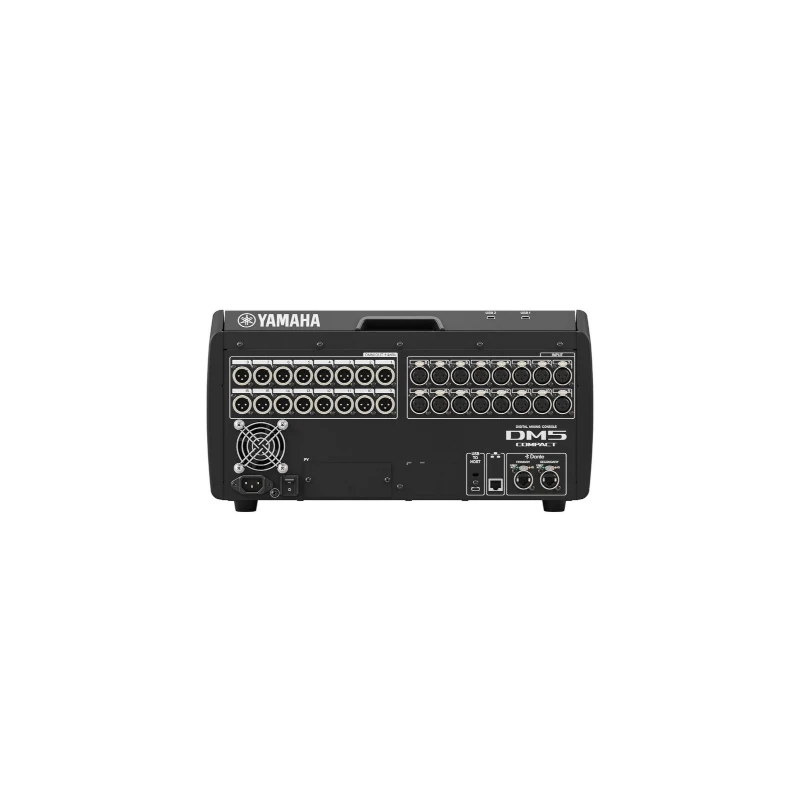

Local I/O: 16 Mic/Line inputs / 16 outputs
USB-C 2.0 Audio-interface: 18 inputs / 18 outputs
Dante-interface: 64 inputs / 64 outputs
Bluetooth audio playback
1 PY Slot
DAW-Remote mode
Size (B x H x D): 446 x 235 x 441 mm
19″ with optional RK5
Weight: 13,3kg
Included: Power cord, Dust cover, Nuendo Live, VST Rack Elements
